Printrbot Assembled Simple 2014 3D Printer, PLA Filament, 1.75mm Ubis Hot End, 4" x 4" x 4" Build Volume from Printrbot
(click images to enlarge)
Description of Printrbot Assembled Simple 2014 3D Printer, PLA Filament,...
We are delighted to offer the famous Printrbot Assembled Simple 2014 3D Printer, PLA Filament, 1.75mm Ubis Hot End, 4" x 4" x 4" Build Volume.
With so many available recently, it is good to have a brand you can recognise. The Printrbot Assembled Simple 2014 3D Printer, PLA Filament, 1.75mm Ubis Hot End, 4" x 4" x 4" Build Volume is certainly that and will be a excellent buy.
For this price, the Printrbot Assembled Simple 2014 3D Printer, PLA Filament, 1.75mm Ubis Hot End, 4" x 4" x 4" Build Volume is widely recommended and is always a popular choice amongst many people. Printrbot have added some nice touches and this equals great value.
Manufacturer Description

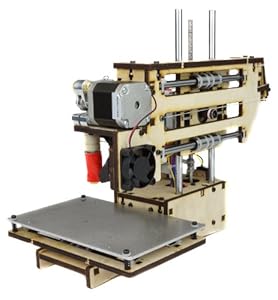

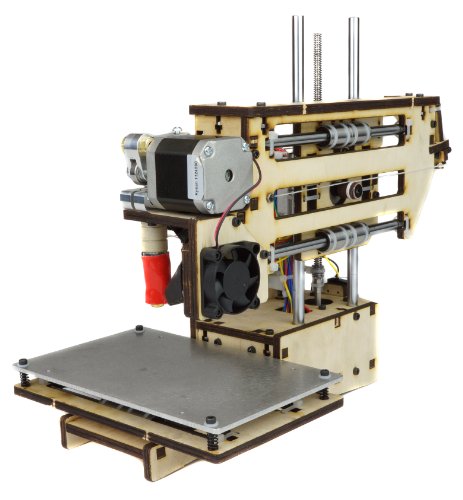

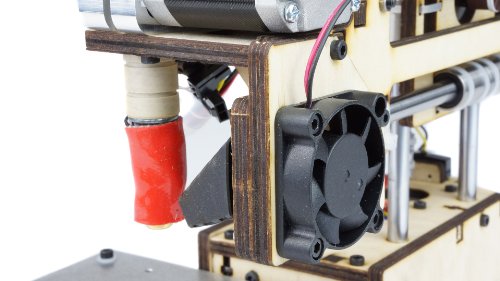

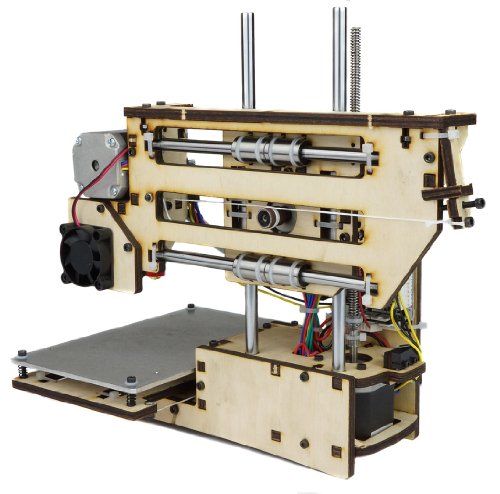

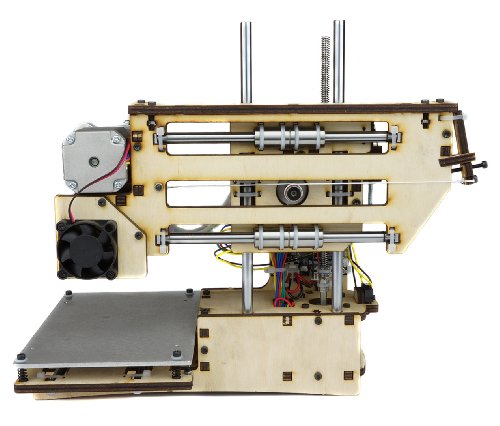

The Printrbot Simple 2014 fully assembled 3D printer has an open platform with an aluminum print bed and a frame constructed of machined aluminum and laser-cut birch wood for fabricating objects to maximum dimensions of 4 x 4 x 4 inches/100 x 100 x 100 mm (H x W x D) using PLA (polylactic acid) thermoplastic filament. The printer has a vertical resolution of 100 microns (0.10 mm) and comes with a direct drive 6061 aluminum extruder with a shrouded cooling fan, and an Ubis hot end that accepts 1.75 mm PLA filament. The unheated 6061 aluminum print bed has a matte finish and provides a level build surface that will not warp. The printer is commanded through the provided micro USB cable using G-code numerical control instructions. An SD memory card slot can store G-code instructions on a memory card (sold separately) for operation without a connection to a computer. It can be used with 3D printer management software packages (sold separately). The frame is made of laser-cut birch wood. Machined aluminum axis rods with linear bearings and injection molded gears help ensure precise movement. The size 17 stepper motors meet the National Electrical Manufacturers Association (NEMA) standard ICS 16-2001. The printer comes with a sample spool of PLA filament.
| Specifications | |
|---|---|
| Printing material | PLA |
| Vertical (Z-axis) resolution | 100 microns (0.10 mm) |
| Hot end | Ubis 1.75 mm |
| Nozzle diameter | 0.4 mm |
| Build speed | 60-65 mm/min |
| Build volume | 4 x 4 x 4 inches/100 x 100 x 100 mm (H x W x D) |
| Overall dimensions | 8 x 14 x 11 inches (H x W x D) |
| Weight | 5.25 lb (2.38 kg) |
| Input format | G-code |
| Input method | Micro USB cable (included) or SD memory card (sold separately) |
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
3D printers fabricate physical objects directly from computer-aided-design (CAD) data sources. Objects created by additive manufacturing are built by dispensing successive thin layers of molten material onto a moving platform base from a robotic extruder nozzle. The material is most commonly a thermoplastic or HDPE (high-density polyethylene) filament.
Printrbot manufactures desktop 3D printers and accessories. The company is headquartered in Lincoln, CA.
What's in the Box?
- Printrbot Simple 2014 3D Printer
- 12v 6A laptop style power supply
- Power cord
- USB cable
- Sample spool of 1.75 mm PLA plastic filament
Product Features
